Duet 3 Tool Board

Duet 3 Tool Board

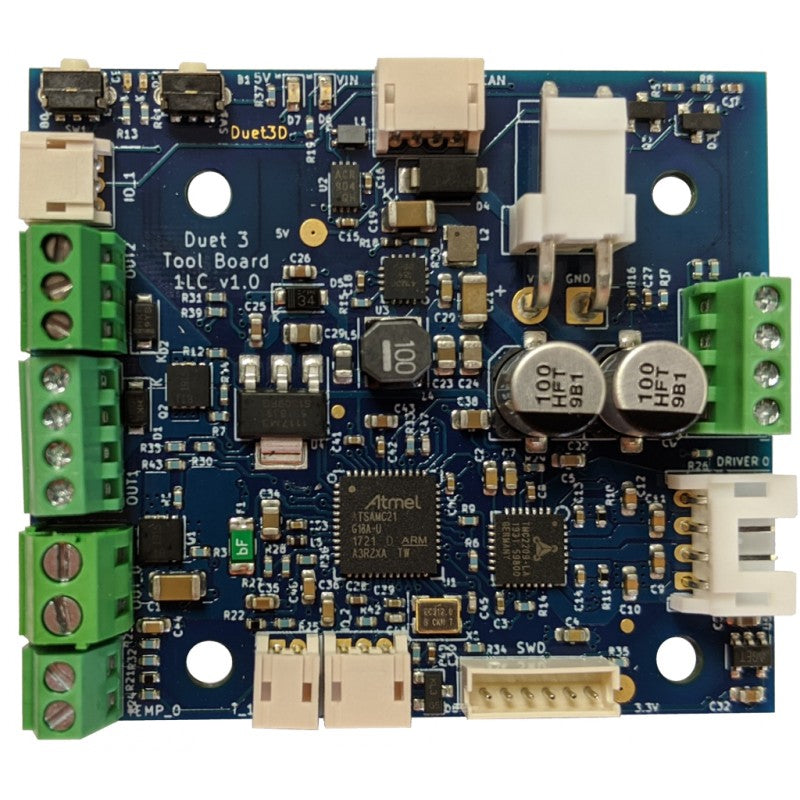

The Duet 3 Toolboard is a CAN-FD connected expansion board for the Duet 3 Mainboard that is designed to provide complete control for a direct drive extruder.

The mounting holes and connector locations match an E3D Hemera, however it can be used with other direct drive extruders with suitable brackets. The stepper motor, heater, temperature sensor, fans and optionally Z probe and filament monitor all connect to the Duet 3 Toolboard, leaving only CAN-FD and power wires to run back to the Duet 3 Mainboard or Tool Distribution Board.
